Week 7

Testing Template Matching

Introduction

This week’s blog is going to talk about what Template Matching is and how it can be used to detect differences. In last week’s blog, multiple areas of the screen have been choosen as possible candidates for containing a difference between the images. To further eliminate them, Template Matching is going to be applied for each area found.

Template Matching

Template Matching compares a patch from an image to another image to find how similar they are [1]. OpenCV implements this in the cv2.matchTemplate() function. It supports six types of comparisons: cv2.TM_CCOEFF, cv2.TM_CCORR, cv2.TM_SQDIFF, cv2.TM_CCOEFF_NORMED, cv2.TM_CCORR_NORMED, cv2.TM_SQDIFF_NORMED, where the last three are just normalised versions of the first three. cv2.TM_CCOEFF and cv2.TM_CCORR are correlation based algorithms in which the best normalised result is 1.0 and cv2.TM_SQDIFF is difference based where the best normalised result is 0.0 [2]. The following code draws a rectangle where the best match for the patch was found and prints in the terminal the calculated values.

Code

def findBestMatch(window, img, patch, method, maxLoc = True):
    patchSize = patch.shape

    gImg = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
    gPatch = cv2.cvtColor(patch, cv2.COLOR_BGR2GRAY)

    result = cv2.matchTemplate(image = gImg, templ = gPatch, method = method)

    # Get the maximum location for CCOEFF and CCORR otherwise get the minimum location
    if maxLoc:
        (_, value, _, (x, y)) = cv2.minMaxLoc(result)
    else:
        (value, _, (x, y), _) = cv2.minMaxLoc(result)

    print window, value

    cv2.rectangle(img, (x, y), (x + patchSize[1], y + patchSize[0]), (255, 0, 0), 3)

    cv2.imshow('Template Matching', img)
    cv2.waitKey(0)

Testing Template Matching

During testing the unnormalised version of cv2.TM_CCORR provided consistent bad results. This combined with the fact that the normalised version of the images give results that are easier to use and understand, only the normalised versions of the methods are going to be used. The following patch from the pcb1.jpg image was used:

Patch

First Image

These are the best matches the algorithms have found for the patch in pcb1.jpg

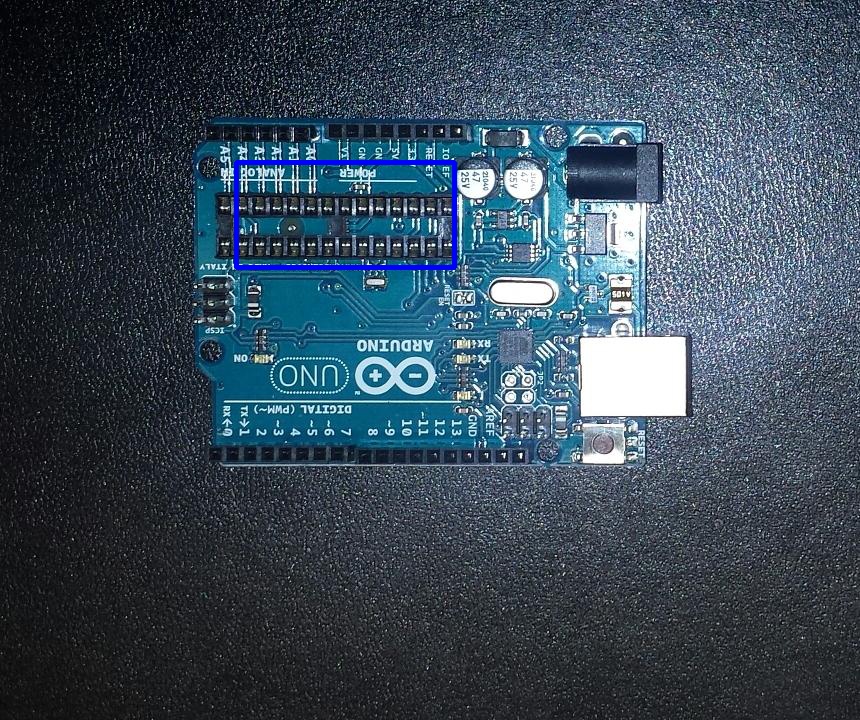

PCB1 - cv2.TM_CCOEFF_NORMED	PCB1 - cv2.TM_CCORR_NORMED	PCB1 - cv2.TM_SQDIFF_NORMED

The best match for each algorithm resulted in the following values:

Method	Value
cv2.TM_CCOEFF_NORMED	0.999999821186
cv2.TM_CCORR_NORMED	0.999999940395
cv2.TM_SQDIFF_NORMED	1.33158494009e-07

Besides cv2.TM_SQDIFF, the other two algorithm resulted in values close to 1.0.

Second Image

These are the best matches the algorithms have found for the same patch in pcb2.jpg

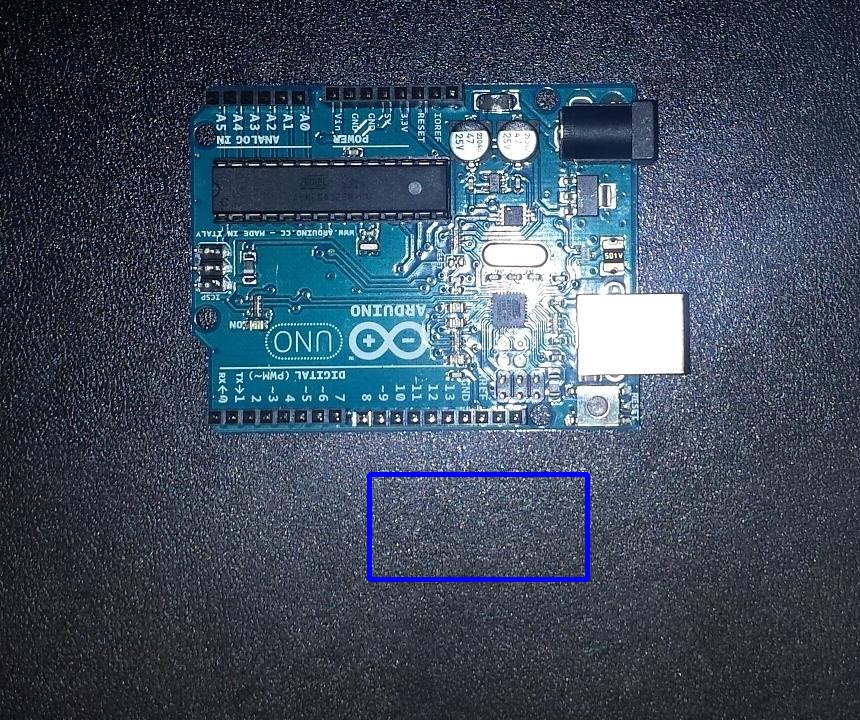

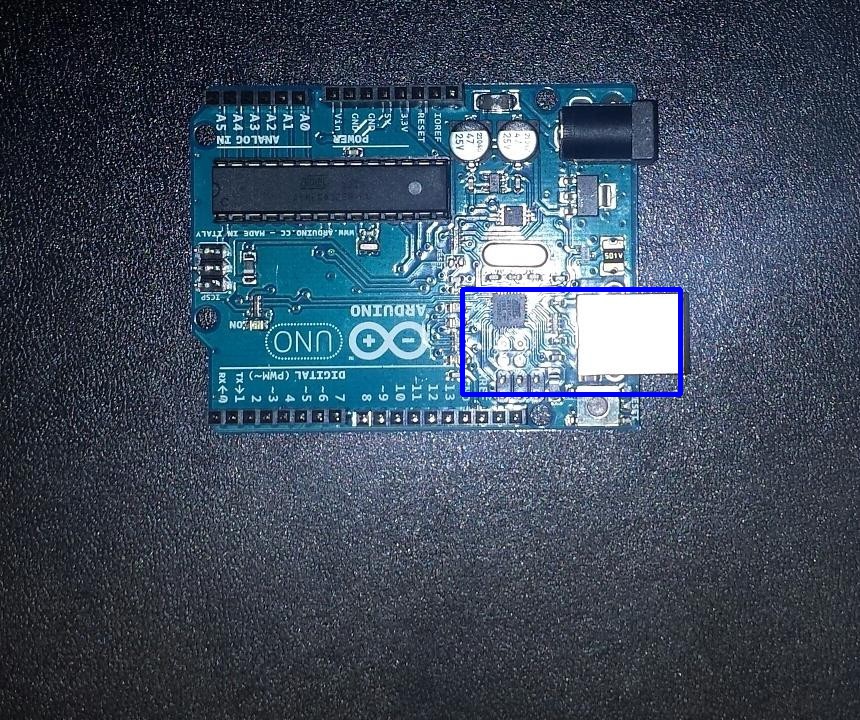

PCB2 - cv2.TM_CCOEFF_NORMED	PCB2 - cv2.TM_CCORR_NORMED	PCB2 - cv2.TM_SQDIFF_NORMED

The best match for each algorithm resulted in the following values:

Method	Value
cv2.TM_CCOEFF_NORMED	0.282997101545
cv2.TM_CCORR_NORMED	0.79689925909
cv2.TM_SQDIFF_NORMED	0.447067975998

Besides the first methods, the other methods have failed to found patch which is expected as it doesn’t contain many similar features. Even so, from the values it can be seen cv2.TM_COEFF has the worst normalised value even though it has correctly identified the image.

Finding the differences

To verify if a patch is different, the coordinates of the best match is compared to the coordinates of the original patch. If the coordinates are different then it hasn’t found a match. Otherwise a threshold (such as 0.5) is used, the areas that have a low match can be considered as containing a difference while if it’s above the treshold then that area was found correctly in the second image. The following code can be used for that:

Code

def getBestMatch(img, patch):
    patchSize = patch.shape

    gImg = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
    gPatch = cv2.cvtColor(patch, cv2.COLOR_BGR2GRAY)

    result = cv2.matchTemplate(image = gImg, templ = gPatch, method = cv2.TM_CCOEFF_NORMED)

    (_, value, _, (x, y)) = cv2.minMaxLoc(result)

    return ((x, y), value)

Conclusion

From the above tests, it can be observed that cv2.TM_COEFF found the correct area of the image even with only a fraction of the patch being the same. Even so, the value resulted is very low which means is not even close to a perfect match. This requires further testing with the other areas found in the previous week. Also, Template Matching has the problem that it can only find a match if the features in both images are the same size and orientation [3]. A solution for this is currently being implemented by the other team members.

References

[1] OpenCV, ‘Template Matching’, 2017, [Online]. Available: https://docs.opencv.org/2.4/doc/tutorials/imgproc/histograms/template_matching/template_matching.html. [Accessed: 2017-10-26]

[2] U.Sinha, ‘Template matching’, 2010, [Online]. Available: http://www.aishack.in/tutorials/template-matching. [Accessed: 2017-10-26]

[3] A.Rosebrock, ‘Multi-scale Template Matching using Python and OpenCV’, 2015, [Online]. Available: https://www.pyimagesearch.com/2015/01/26/multi-scale-template-matching-using-python-opencv/. [Accessed: 2017-10-26]
